FLEXi

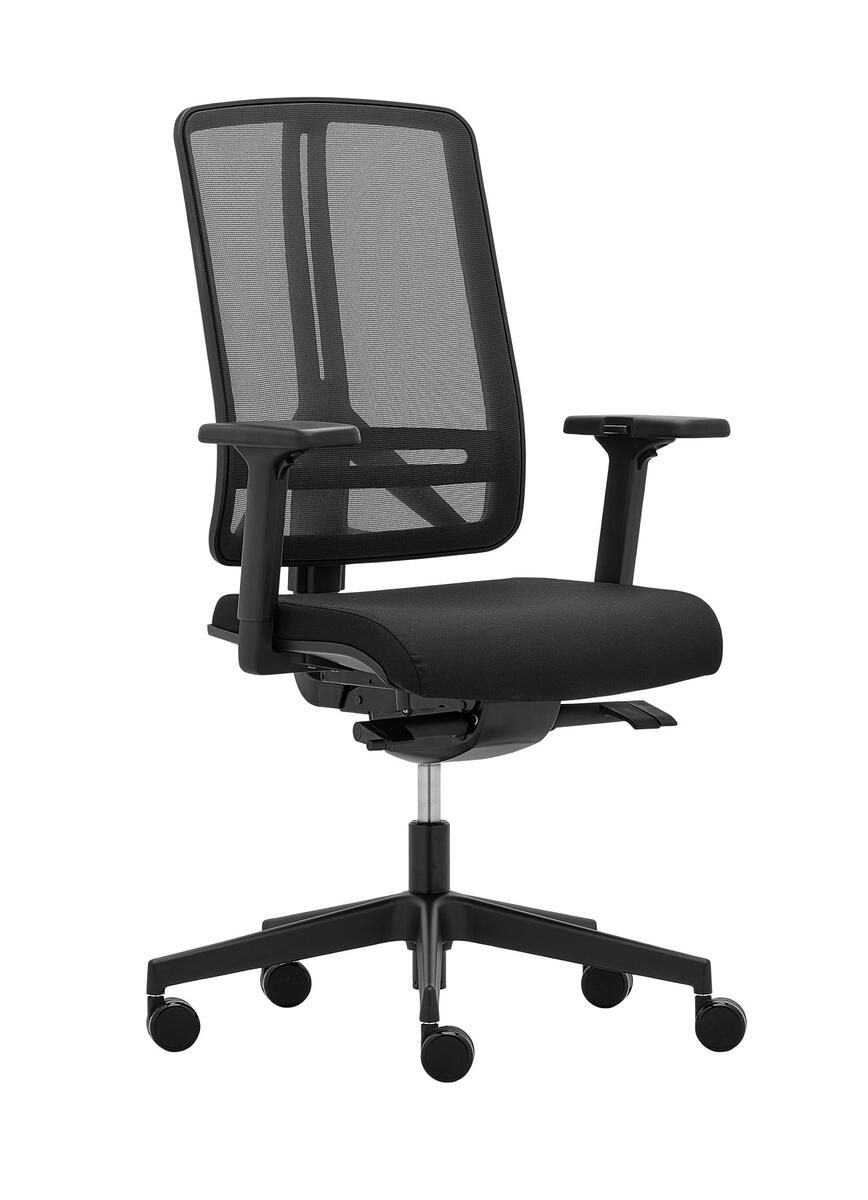

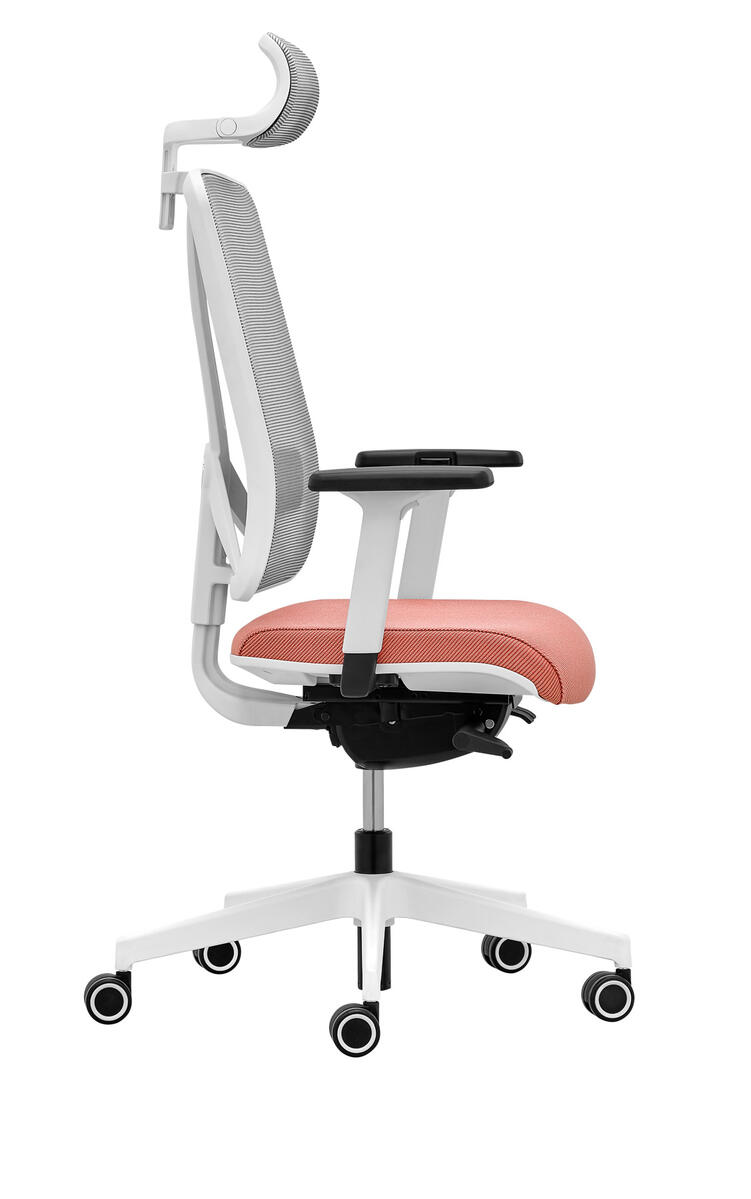

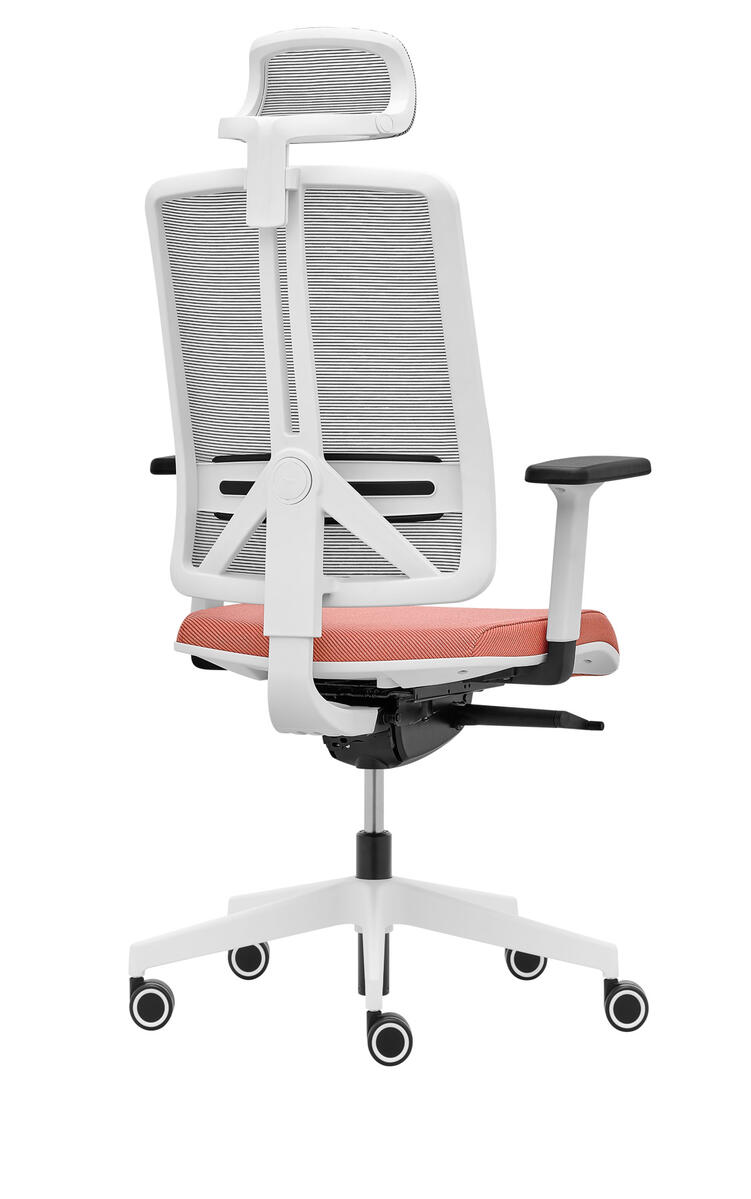

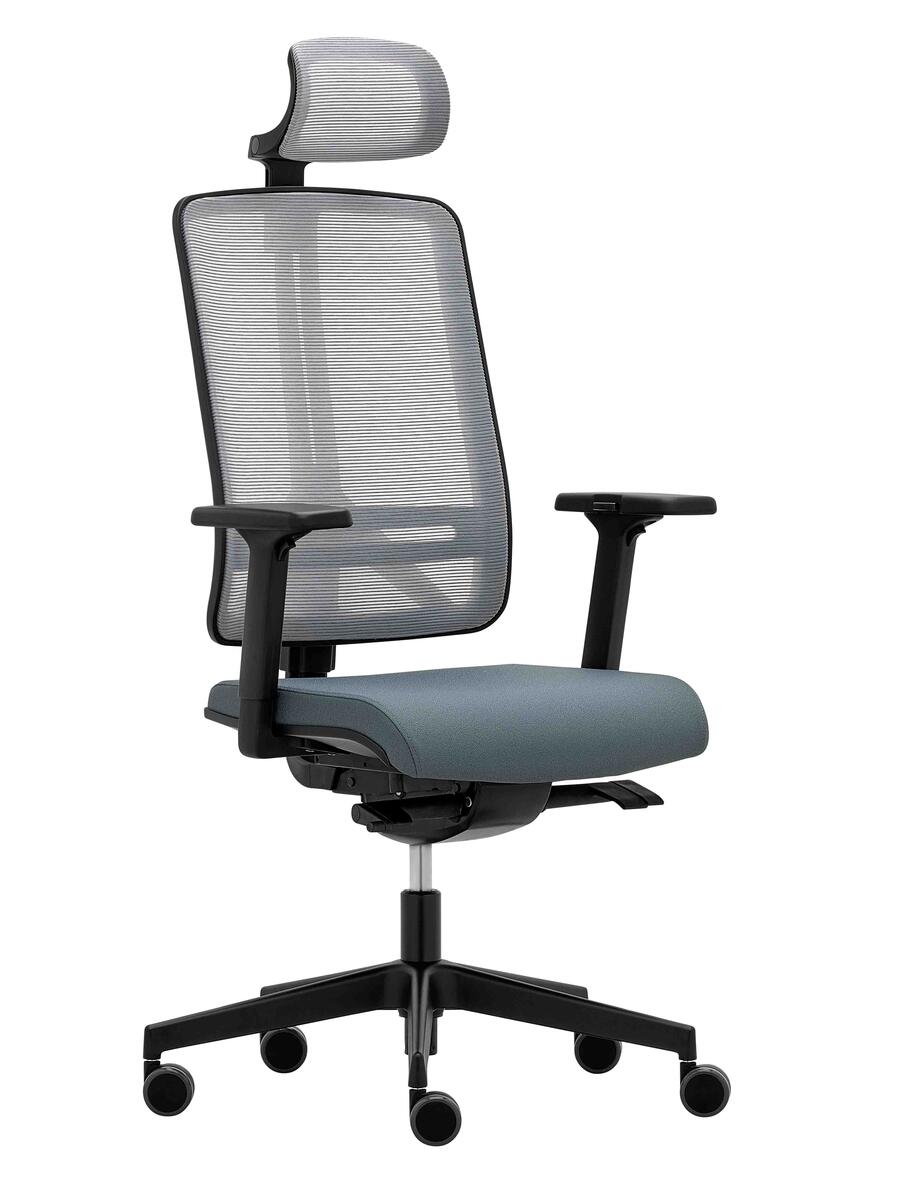

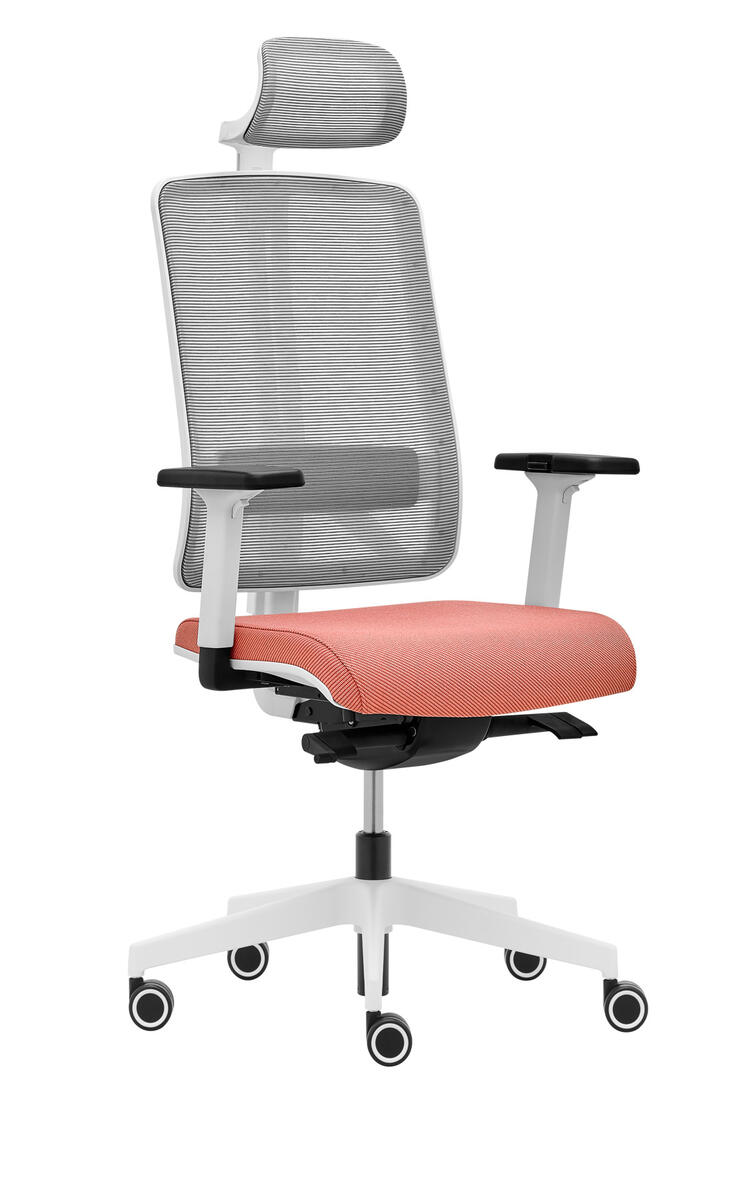

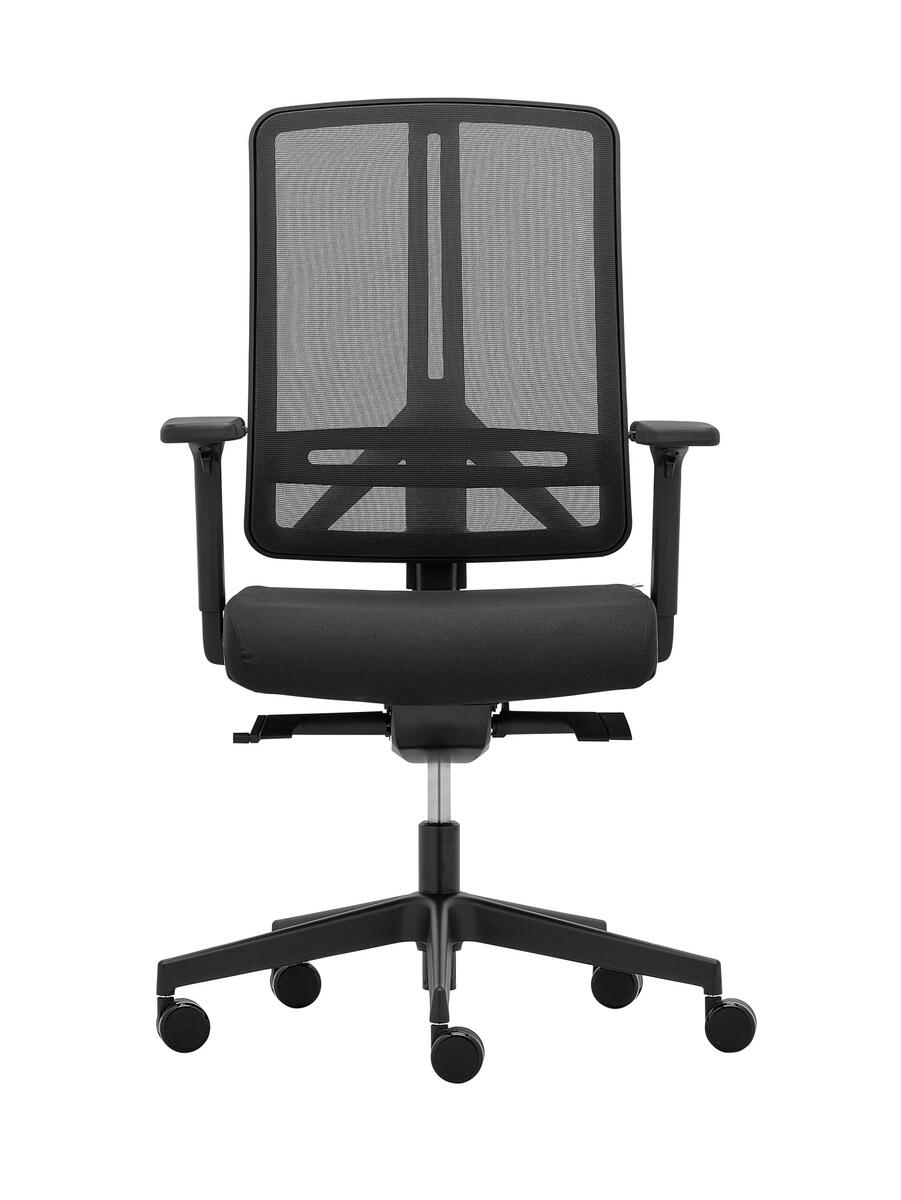

FX 1104

The FLEXi collection stands out for its functionality, perfect ergonomics and great design. Its wide range of features allows maximum customization for each user. Thanks to its innovative mechanism and intuitive operation, each feature’s setting simplifies work and provides maximum seating comfort.

  • Design: Massimo Costaglia

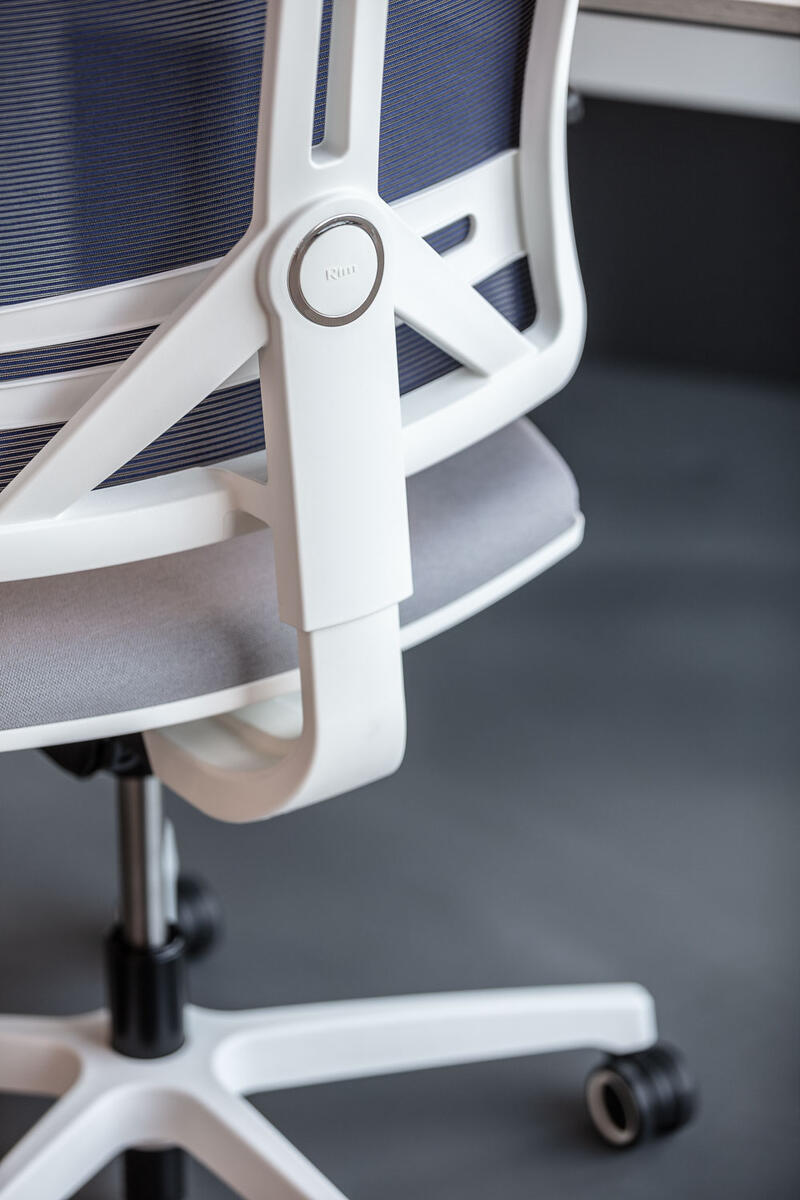

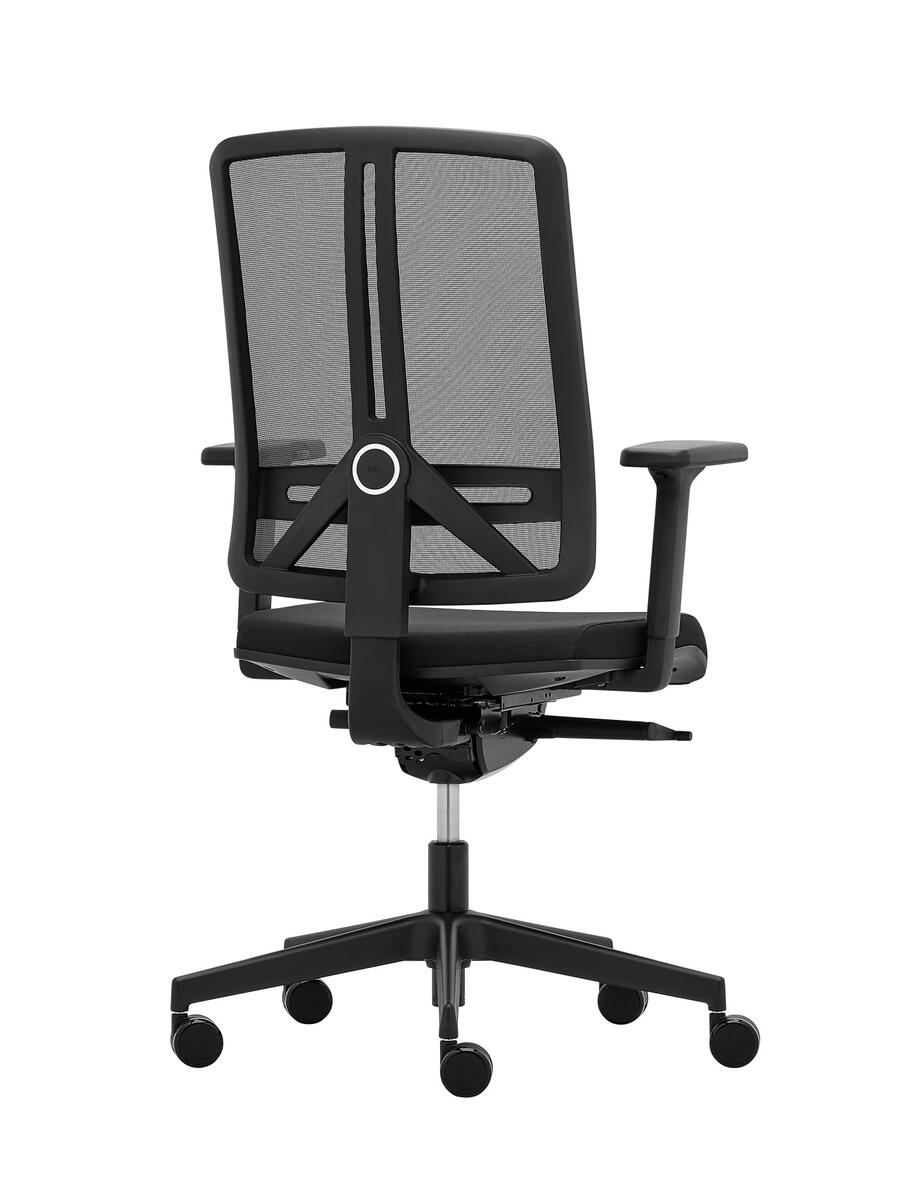

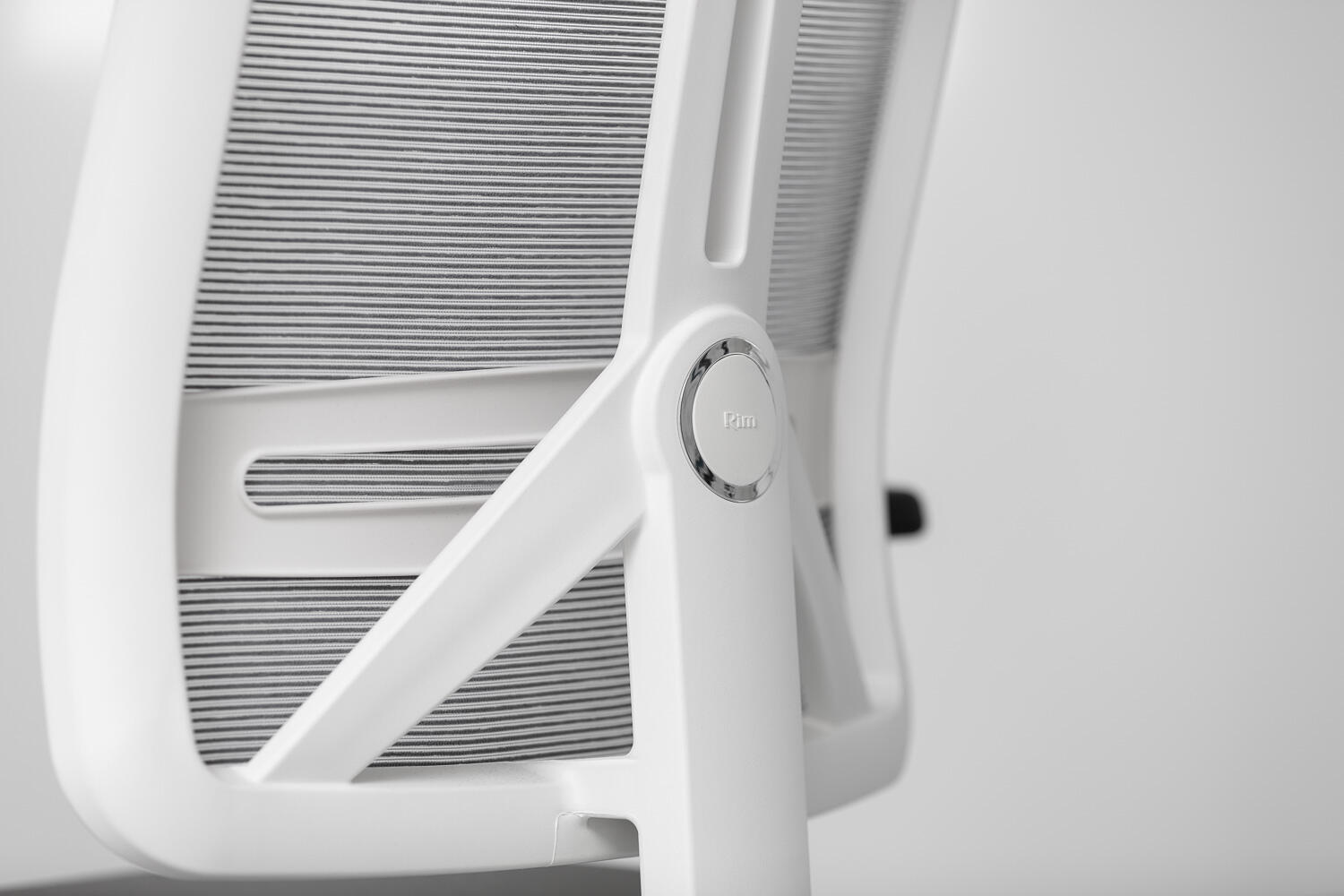

The chair is equipped with synchronous mechanism ST1 to provide so-called dynamic sitting. Meshed backrest consists of a light-weight plastic frame with a central bracket with the advantage of height-adjustment within the range of up to 6 cm.

Optional configuration

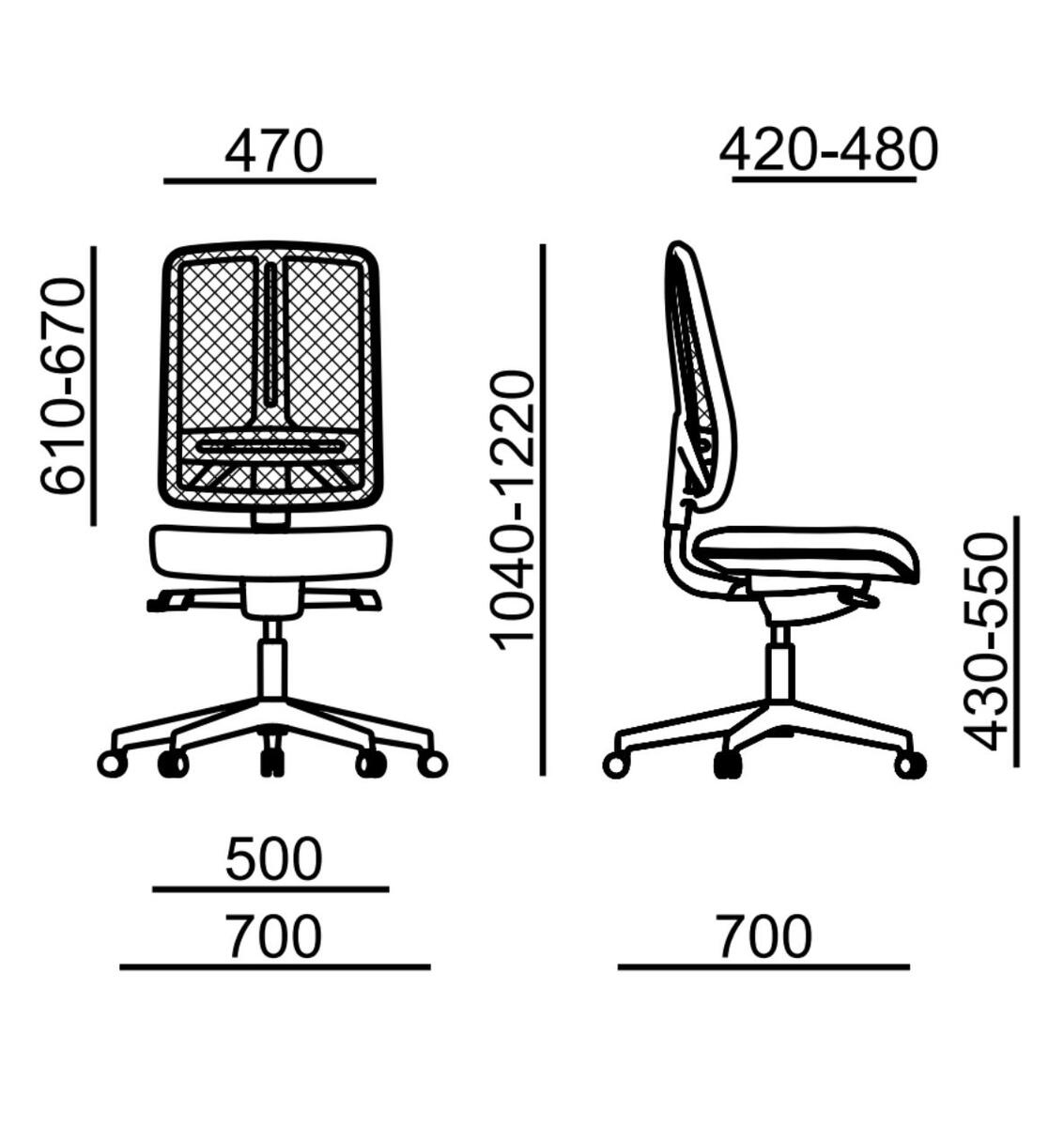

Technical specifications
Weight15 kg
Volume0,24 m³
Height1040-1220 mm
Width700 mm
Depth700 mm

Versions and configurations

Basic version

Plastic parts - black

Mechanism ST1

ST1 SYNCHRONOUS MECHANISM WITH SIDE ADJUSTMENT • seat-height adjustment • 5 locking positions • adjustable backrest counter pressure (45-120 kg of body weight) • 60 mm seat depth adjustment (only for FX 1104, FX 1114, FX 1124, FO 642 C, AT 985 B) • -5° seat tilt adjustment (only for VI 1401, VI 1411, FX 1103 A, FX 1113 A)

Five-star base

Black plastic, Ø 70 cm

Castors

Hard, black, braked, Ø 60 mm

Lumbar support

Height-adjustable lumbar support 40 mm

Seat-depth adjustment 60 mm

Mesh K+R 482

Black

Optional configuration

Plastic parts colour

  • White

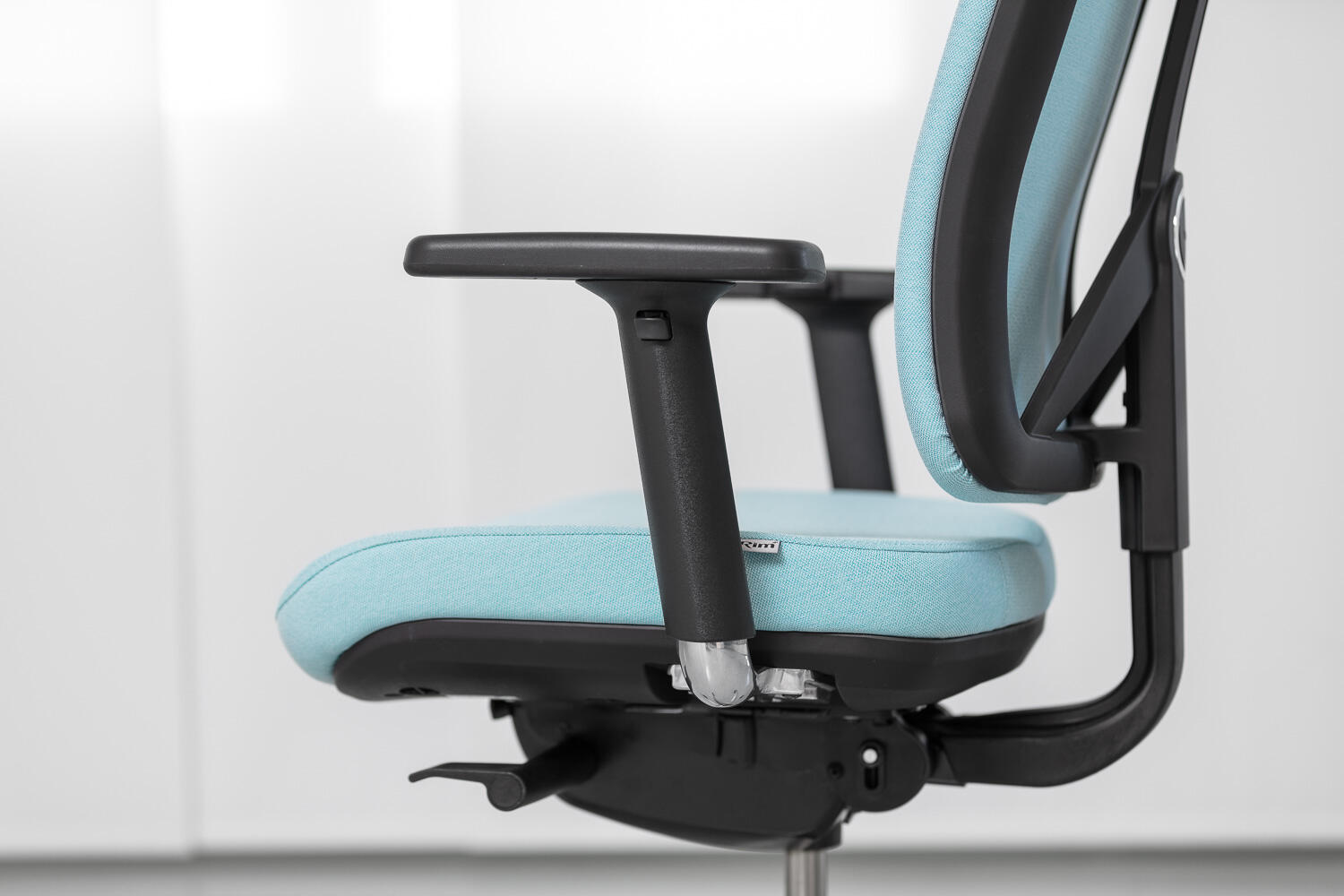

Armrests

  • Armrests 080 2F

    Height and depth adjustable, black

  • Armrests 087 3F

    Multifunctional – black

  • Armrests 087 3F

    Multifunctional – white

Base

  • Five-star conical base

    White plastic Ø 70 cm

Gas unit

  • Saf. gas unit with suspension

  • Higher saf. gas unit with suspension

  • Saf. gas unit for seat height 450-570 mm

Castors

  • Soft, Ø 60 mm, braked

  • Castors with white ring, universal for soft and hard floors

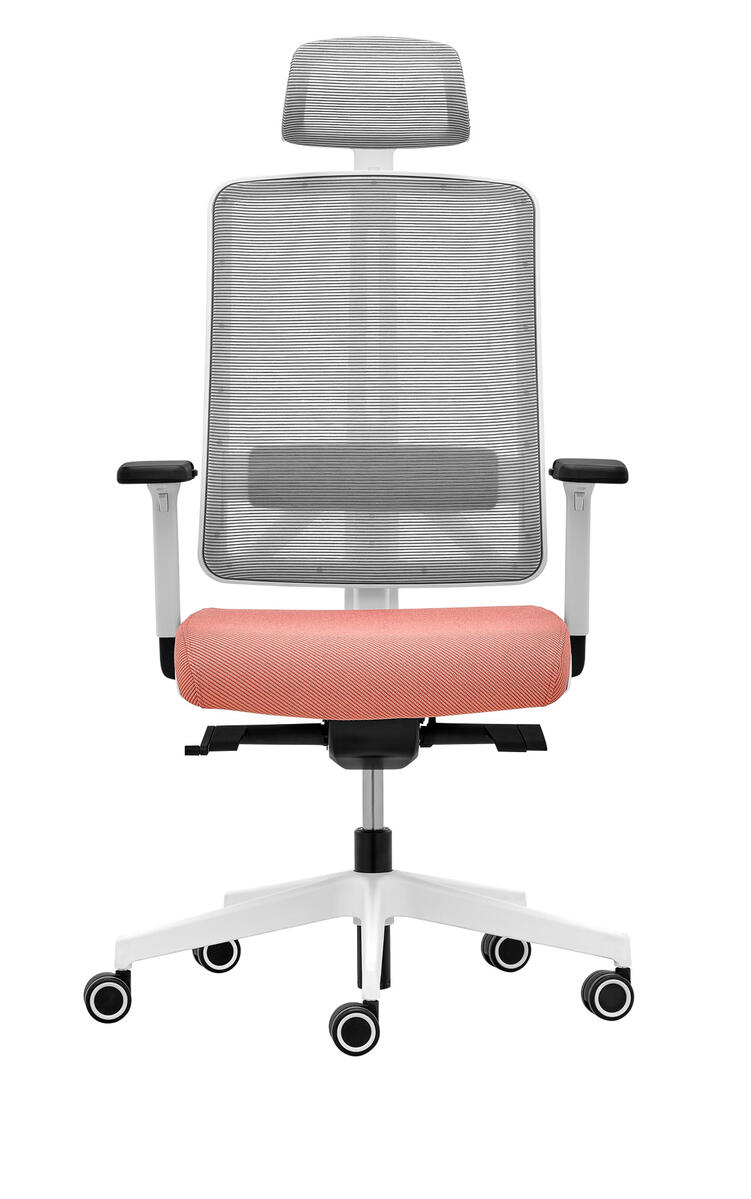

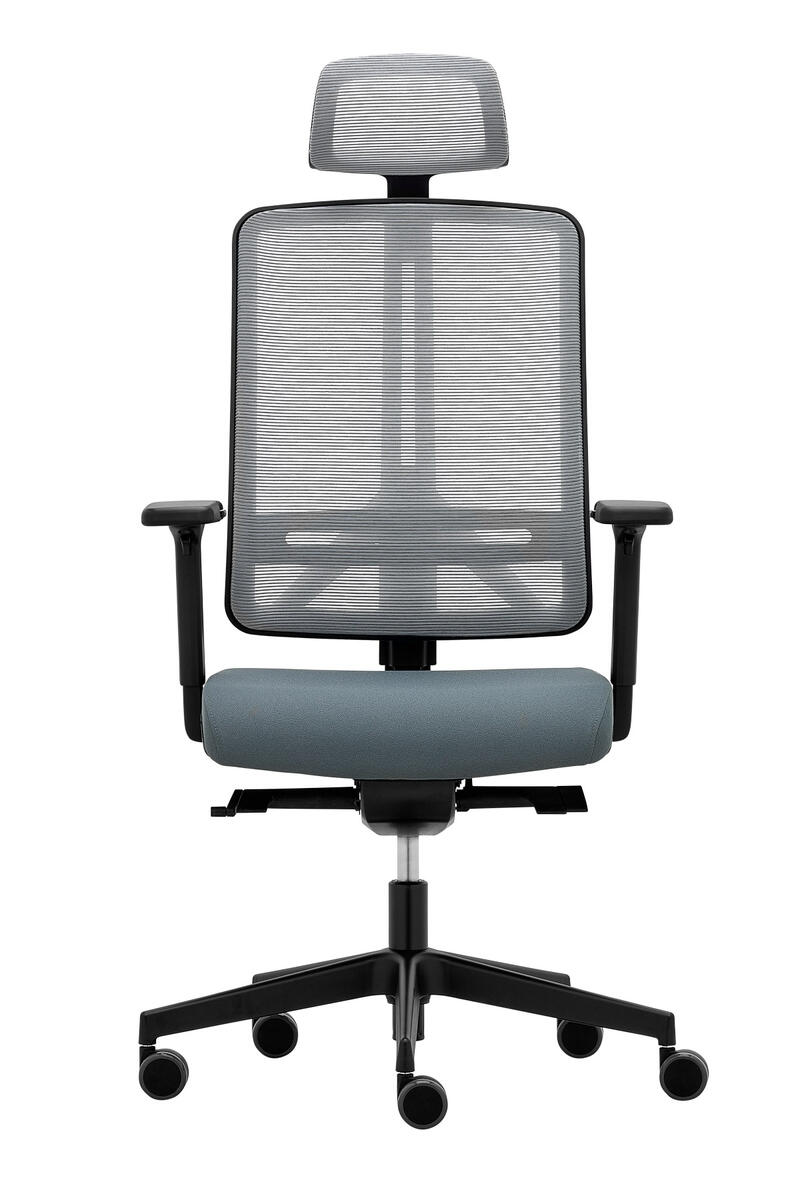

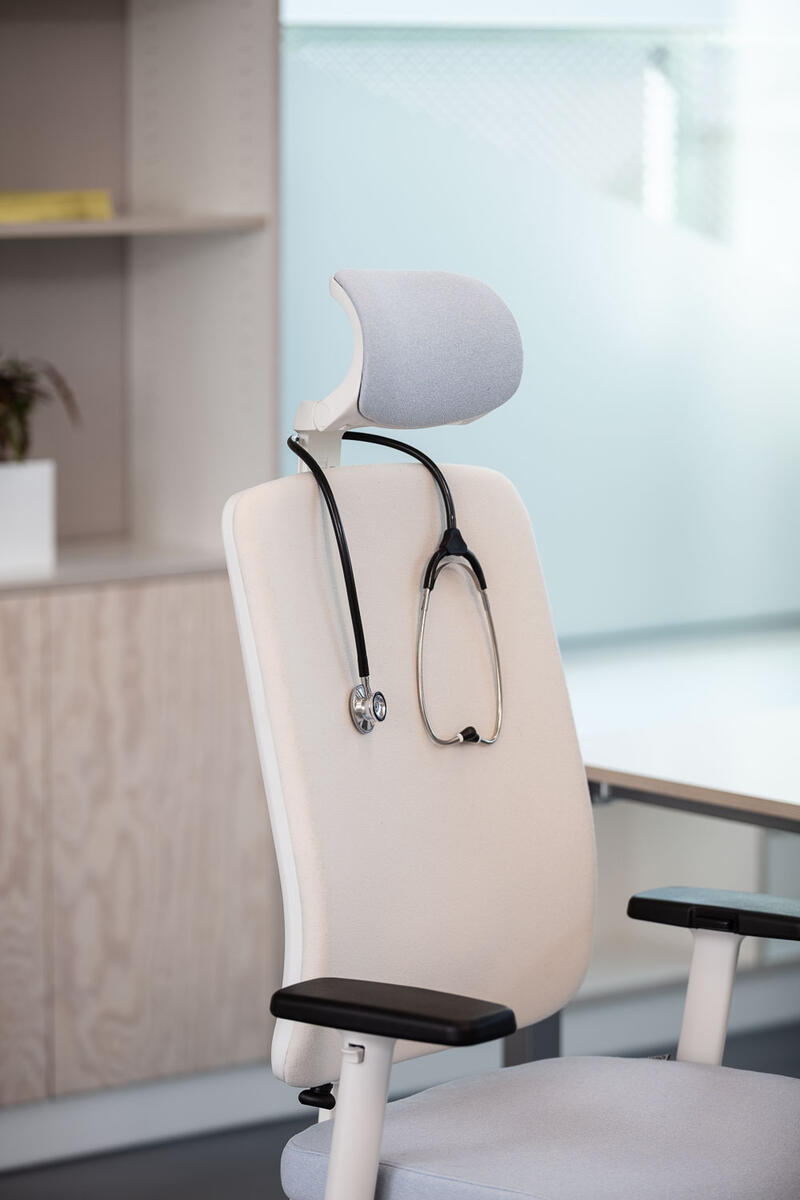

Headrest

  • Height-adjustment (60 mm), tiltable

Coat hanger

  • Coat hanger DO 021 (with headrest only) - plastic black / white.

Soft pad for lumbar support

    Assembly

      Materials

      BondaiP

      • Material
        100% polyester
      • Weight ± 5 %
        250 g/m², 350 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        150 000
      • Pilling resistance / group
        4/5
      • Light fastness / group
        6
      • Flammability
        EN 1021-1, EN 1021-2, CRIB 5 (BS 5852 PART II), BS 7176:1995, medium hazard

      EraA

      • Material
        100% polyester
      • Weight ± 5 %
        320 g/m², 448 g/ b.m
      • Width
        140 cm
      • Abraison resistance / martindale
        100 000
      • Pilling resistance / group
        4
      • Light fastness / group
        5
      • Flammability
        BS EN 1021 -2:2014, BS 7176:2007, low hazard

      PhoenixA

      • Material
        100% polyester
      • Weight ± 5 %
        285 g/m² 399 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        100 000
      • Pilling resistance / group
        4
      • Light fastness / group
        6
      • Flammability
        BS EN 1021 – 1:2014, BS EN 1021- 2:2014, BS 7176:2007 low hazard

      TonalB

      • Material
        99% post-consumer recysceld polyester, 1% polyester
      • Weight ± 5 %
        225 g/m²
      • Width
        140 cm
      • Abraison resistance / martindale
        100.000
      • Pilling resistance / group
        4-5
      • Light fastness / group
        6-8
      • Flammability
        CA TB 117-2013, ASTM E 84 Class I, BS EN 1021 1&2 Cigarette and Match, BS EN 1021-1 Cigarette, BS 476 Part 7 class I, DIN EN 13501-1 B-s1,d0 (glued)

      UrbanB

      • Material
        100% recyclable polyester
      • Weight ± 5 %
        340 g/ m², 476 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        100 000
      • Pilling resistance / group
        4
      • Light fastness / group
        6
      • Flammability
        BS EN 1021-1:2014, BS EN 1021-2:2014, BS 7176:2007 low hazard, BS 5852:2006 section 4 ignition source 5

      Jet BioactiveB

      • Material
        100% polyester, TREVIRA CS Ⓡ bioactive
      • Weight ± 5 %
        260 g/ m², 365 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        65 000
      • Pilling resistance / group
        5
      • Light fastness / group
        6
      • Flammability
        UNI 9174-8456, DIN 4102, NF 92501-7, CRIB 5, EN 1021/1-2, IMO part 8, UNI 9175, medium hazard

      OceanicC

      • Material
        100% post-consumer recycled polyester, including 50% SEAQUAL yarn
      • Weight ± 5 %
        497 g/ m², 695 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        >100 000
      • Pilling resistance / group
        4
      • Light fastness / group
        5
      • Flammability
        EN 1021 - 1 EN 1021 - 2 BS 7176, low hazard

      CrispC

      • Material
        93% wool, 7% polyamid
      • Weight ± 5 %
        328 g/ m², 460 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        200 000
      • Pilling resistance / group
        4-5
      • Light fastness / group
        5-7
      • Flammability
        BS 5852 0&1 EN 1021-1&2 UNI 9175 c-1 IM

      Step / Step MelangeC

      • Material
        100% trevira CS
      • Weight ± 5 %
        335 g/ m², 470 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        100 000
      • Pilling resistance / group
        4/5
      • Light fastness / group
        5/7
      • Flammability
        EN 1021 - 1&2, BS 5852, CRIB 5, BS 5851 PART 1&2, BS 7176, medium hazard

      FameC

      • Material
        95% wool, 5% polyamide
      • Weight ± 5 %
        450 g/ m², 630 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        200 000
      • Pilling resistance / group
        4/5
      • Light fastness / group
        6
      • Flammability
        BS EN 1021 - 1&2, BS 5852 CRIB 5, BS 7176 medium hazard

      BlazerD

      • Material
        100% wool
      • Weight ± 5 %
        460 g/ m², 644 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        >50 000
      • Pilling resistance / group
        4
      • Light fastness / group
        5
      • Flammability
        EN 1021 - 1&2 Cigarette & Match, BS 7176 Low Hazard, NF D 60-013, ÖNORM B 3825 & A 3800-1 (58kg/m3 CMHR Foam), UNI 9175 Classe 1 IM

      FlaxD

      • Material
        50% polyamide, 30% wool, 20% linen
      • Weight ± 5 %
        390 g/ m², 545 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        >200 000
      • Pilling resistance / group
        4
      • Light fastness / group
        5
      • Flammability
        EN 1021 - 1&2, BS 7176 low hazard, BS 5852 ignition sorce 5, BS 7176 medium hazard, UNI 9175 classe M, NF D 60-013 Flammability performance is dependent to the used foam.

      PrinceE

      • Material
        Leather 0,9-1 mm
      • Description
        Upholstery suitable leather. Natural material may vary in colour and structure. Its little imperfection and wrinkles make leather original and are not a reason to complaint.

      Mesh TaleMesh

      • Material
        99% post-consumer recysceld polyester, 1% polyester
      • Weight ± 5 %
        261 g/ m²; 365 g/ b.m.
      • Width
        140 cm
      • Abraison resistance / martindale
        100.000
      • Pilling resistance / group
        5
      • Light fastness / group
        6-8
      • Flammability
        BS EN 1021-1 Cigaretta; BS EN 1021 1&2 Cigarette and Match; CA TB 117-2013

      Mesh K+RMesh

      • Material
        410, 424, 425 - 97% polyester, 2% polyamid, 1% elastan
        482 - 99% polyester, 1% elastan
      • Weight ± 5 %
        410, 424, 425 - 412 g/ b.m.
        482 - 243 g/ b.m.
      • Width
        410, 424, 425 - 120 cm
        482 - 165 cm
      • Pilling resistance / group
        4/5
      • Light fastness / group
        5/7
      • Flammability
        410, 424, 425 - DIN EN 1021:2014-01 PART 1
        482 - EN 1021:2006 PART 1

      Mesh RibMesh

      • Material
        58% polyamid, 34% polyester, 8% polyacryl
      • Weight ± 5 %
        400 g/ b.m.
      • Width
        160 cm
      • Abraison resistance / martindale
        150 000
      • Pilling resistance / group
        4/5
      • Light fastness / group
        5/7
      • Flammability
        DIN EN 1021:2014-01 PART 1

      Mesh OmegaMesh

      • Material
        100% polyester
      • Weight ± 5 %
        500 g/ b.m.
      • Width
        160 cm
      • Abraison resistance / martindale
        100 000
      • Pilling resistance / group
        4/5
      • Light fastness / group
        5/7
      • Flammability
        BS EN 1021 1&2, BS 5852 PART 1 0, 1

      Gallery

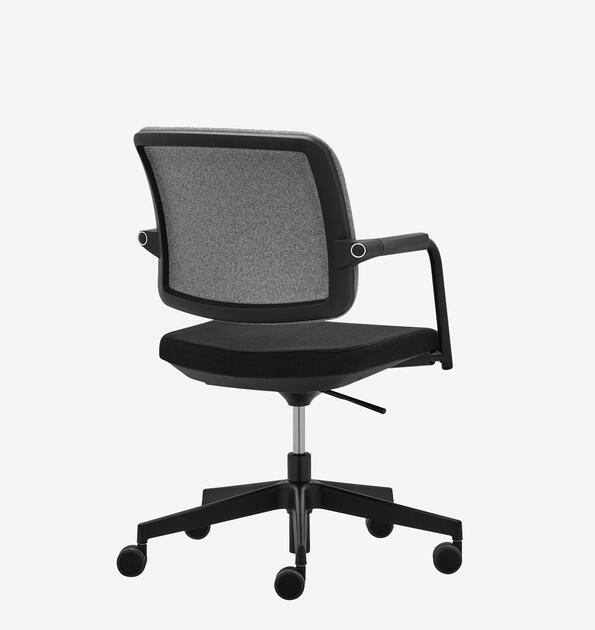

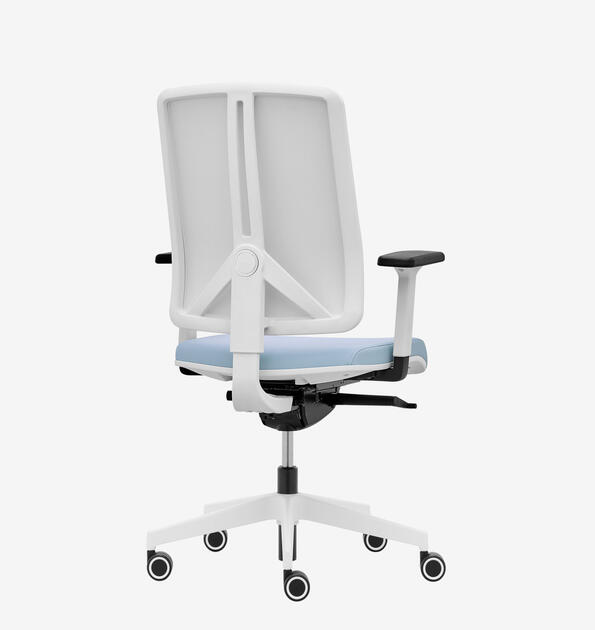

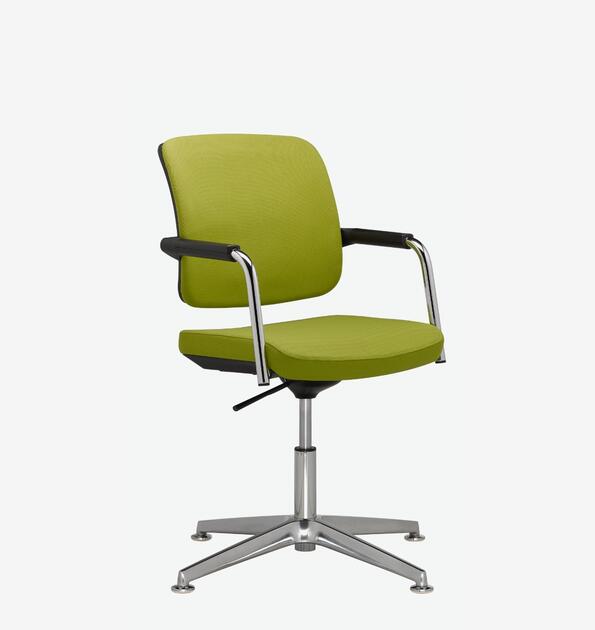

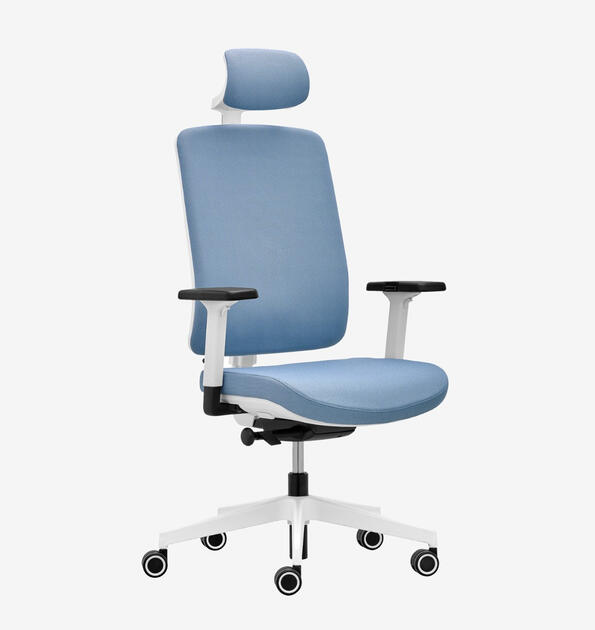

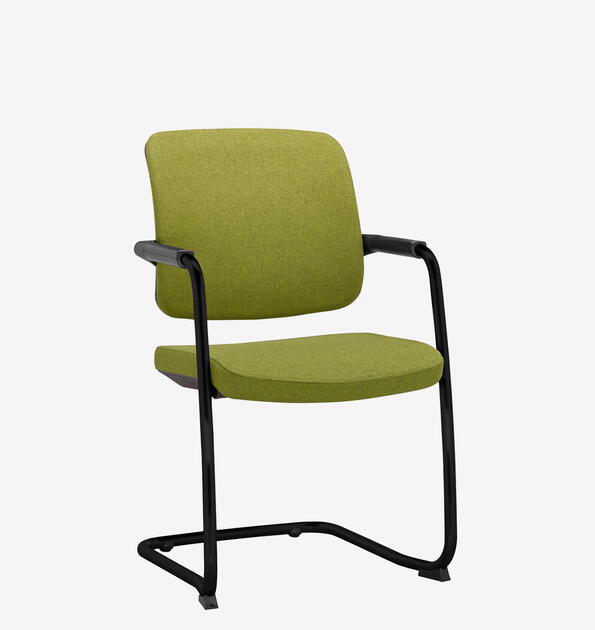

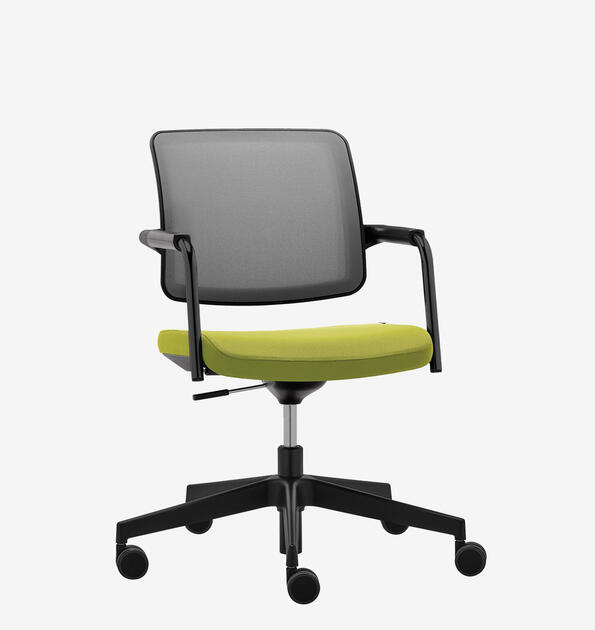

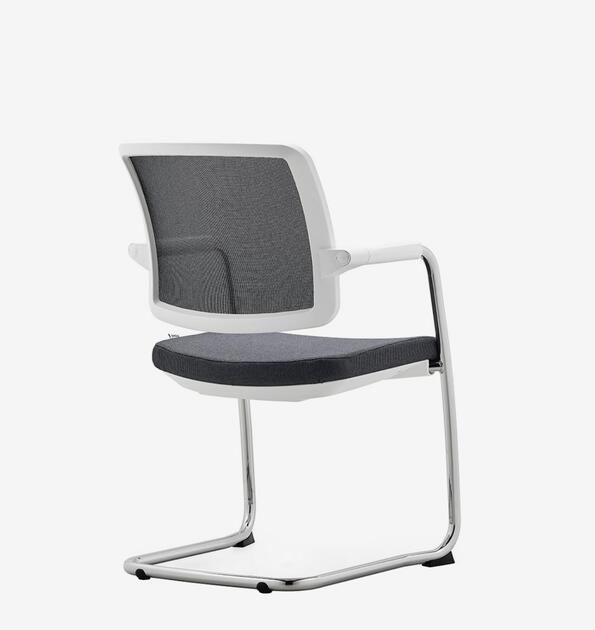

      Other models Flexi
